types#
Representations of data and parameters used throughout the system.

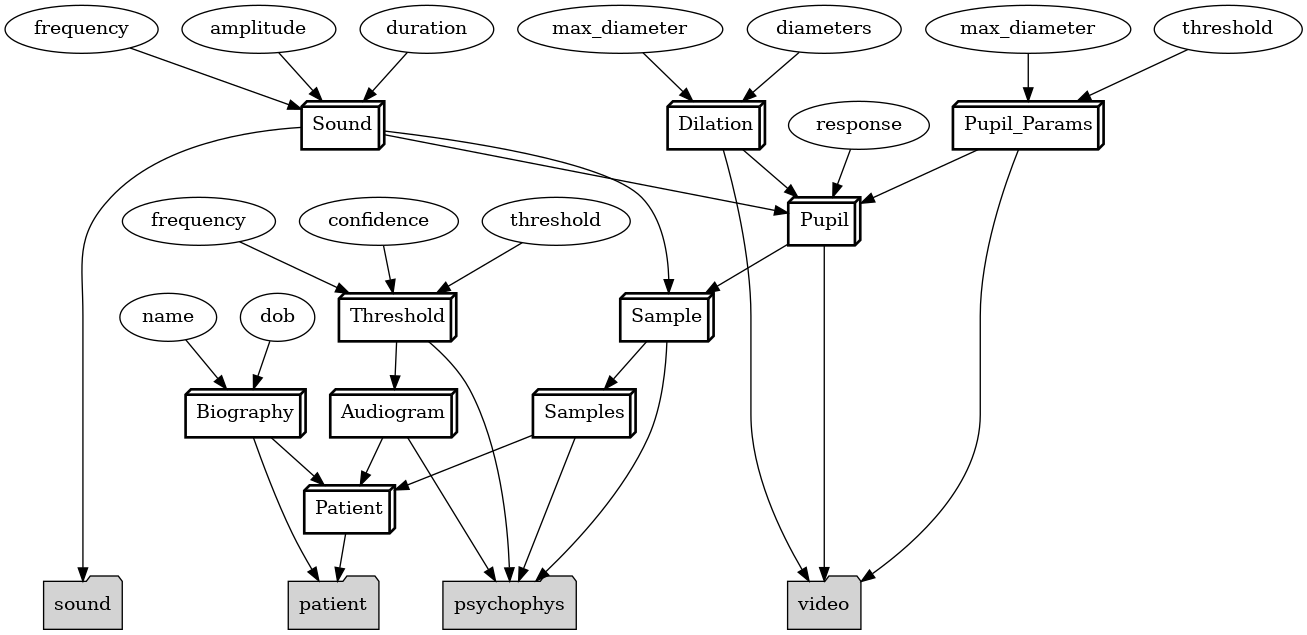

Here are some of the basic relationships between the basic types mapped to show how they relate in order to derive a patient’s audiogram
![digraph {
charset="utf-8";
// modules
subgraph modules{
patient [ style="filled" shape=folder]
psychophys [ style="filled" shape=folder]
sound [ style="filled" shape=folder]
video [ style="filled" shape=folder]
{rank=max; patient psychophys sound video}
}
// individual types
Patient [ style="bold" shape=box3d]
Biography [ style="bold" shape=box3d]
Sample [ style="bold" shape=box3d]
Samples [ style="bold" shape=box3d]
Threshold [ style="bold" shape=box3d]
Audiogram [ style="bold" shape=box3d]
Sound [ style="bold" shape=box3d]
Pupil_Params [ style="bold" shape=box3d]
Dilation [ style="bold" shape=box3d]
Pupil [ style="bold" shape=box3d]
// group into modules
Patient -> patient
Biography -> patient
Sample -> psychophys
Samples -> psychophys
Threshold -> psychophys
Audiogram -> psychophys
Sound -> sound
Pupil_Params -> video
Dilation -> video
Pupil -> video
// add attrs
name -> Biography
dob -> Biography
freq_thresh [label="frequency"]
freq_sound [label="frequency"]
freq_thresh -> Threshold
threshold -> Threshold
confidence -> Threshold
freq_sound -> Sound
amplitude -> Sound
duration -> Sound
pupil_thresh [label="threshold"]
max_diam_thresh [label="max_diameter"]
pupil_thresh -> Pupil_Params
max_diam_thresh -> Pupil_Params
diameters -> Dilation
max_diam_dil [label="max_diameter"]
max_diam_dil -> Dilation
response -> Pupil
// connect types
Biography -> Patient
Samples -> Patient
Audiogram -> Patient
Pupil -> Sample
Sample -> Samples
Sound -> Sample
Threshold -> Audiogram
Sound -> Pupil
Dilation -> Pupil
Pupil_Params -> Pupil
}](../../_images/graphviz-53ab84a33e83f9553a14d73fc88473d6b65f8025.png)
Data types to keep inter-module communication consistent
